๐ Technical Specifications
(Please replace the bracketed values with your actual product measurements)
Connector Type 1: MPO-12 (Female) / MTP® Compatible [with Push-Pull Tab]
Connector Type 2: [12 x LC Simplex / 6 x LC Duplex] (Uniboot / Standard boot)
Fiber Type: Multimode 50/125μm (OM3 / OM4 / OM5 available upon request)
Fiber Core Count: 12 Cores (Strands)
Cable Outer Jacket: Aqua [LSZH / OFNR (Riser) / OFNP (Plenum)]
Connector Polish: UPC (Ultra Physical Contact) to UPC
Insertion Loss (IL) - MPO: ≤ 0.35 dB (Elite Low-Loss version: ≤ 0.20 dB)
Insertion Loss (IL) - LC: ≤ 0.20 dB
Return Loss (RL): ≥ 30 dB (Multimode)
Branch Length: [0.3m / 0.5m] Fan-out legs
Total Cable Length: [1m, 3m, 5m, 10m, Custom lengths up to 100m+]
Operating Temperature: -20°C to +70°C
Labeling: [Numbered white identification labels (1-12) on each breakout leg]
โ
Key Features & B2B Selling Points
๐ High-Density & Space-Saving: Converts one high-density MPO connection into 12 standard LC connections, significantly reducing cable congestion in patching panels and saving valuable rack space.

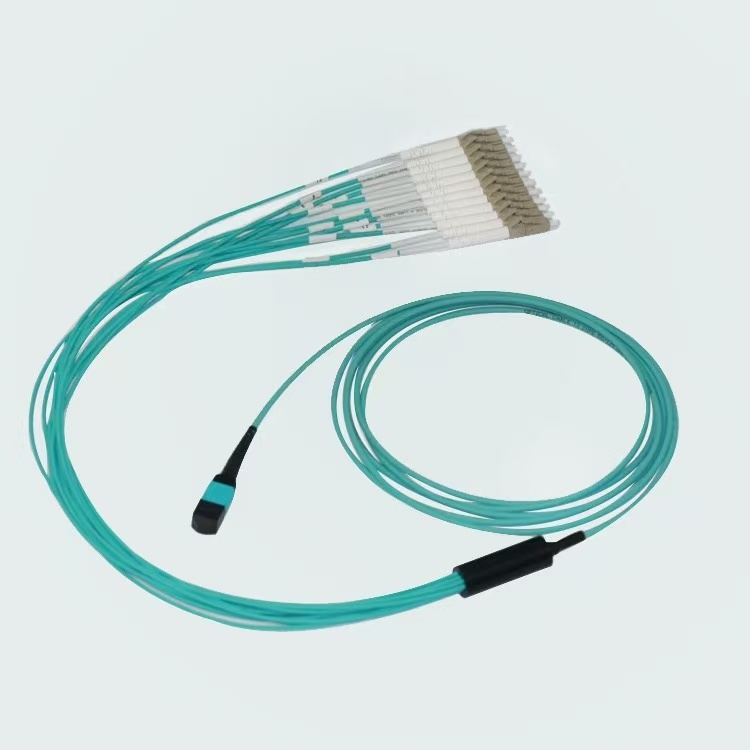

๐ท๏ธ Pre-Numbered Individual Breakout Legs: As seen in the image, each LC branch is equipped with durable, clear number labels (1-12). This drastically reduces installation time and eliminates troubleshooting guesswork when connecting to transceivers and equipment ports.
๐ Ultra-Low Insertion Loss: Our MPO and LC connectors are 100% 3D interferometer tested. Guaranteeing tight physical contact, they ensure minimal signal loss and optimum data transmission for 10G to 100G optical networks.
๐ก๏ธ Premium Bend-Insensitive Fiber: Manufactured with high-grade multi-mode fibers that resist macro-bending, ensuring stable performance even when cables are routed tightly in data center trays.
๐ง Rugged Strain Relief & Protection: The sturdy fan-out breakout kit and flexible strain relief boots protect the delicate fibers at the transition points, preventing breakage during regular handling.
๐ญ OEM / ODM Customization: We offer full factory customization. You can choose the exact fiber grade (OM3/OM4/OM5), polarity type (A/B/C), exact fan-out length, and jacket materials (LSZH, OFNP) to perfectly match your specific cabling infrastructure.
๐ Main Applications
Data Centers: Transitioning between 40G/100G QSFP ports and 10G/25G SFP/SFP+ ports.
Cloud Computing & Enterprises: Core to distribution switch connectivity.
Optical Transceivers: Connecting QSFP-4SFP10G breakout modules to servers/storage.
Telecom Networking: High-speed backbone and fiber-to-the-x (FTTX) internal wiring.
High-performance computing (HPC) clusters.
